General | ||

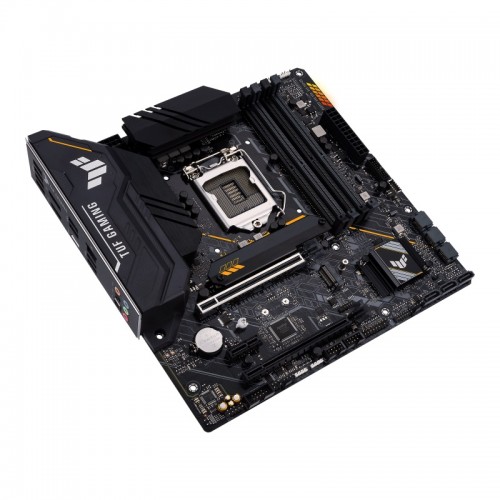

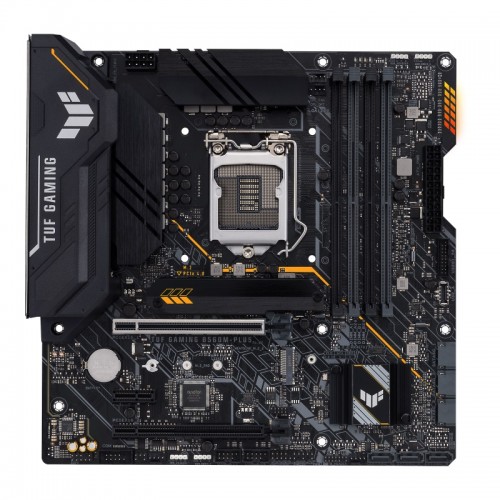

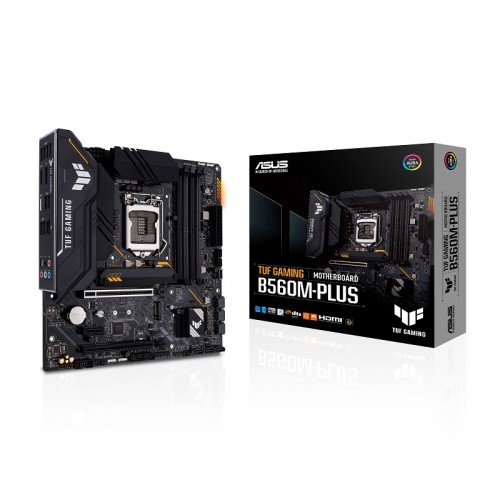

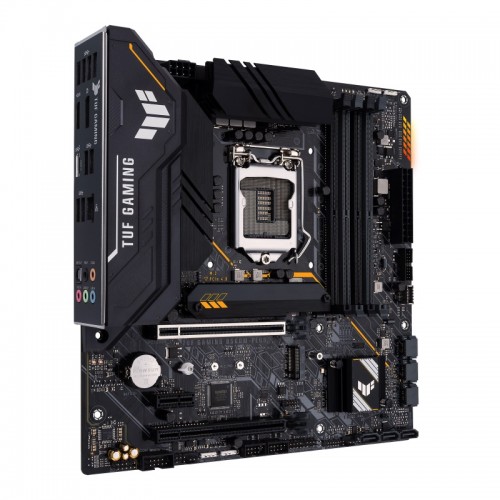

Model | Asus TUF GAMING B560M-PLUS | |
Chipset | Intel B560 | |
Form Factor | microATX | |
Additional Info | ||
BIOS Type | 128 Mb Flash ROM | |
BIOS Model | UEFI AMI BIOS | |
Chipset Brand | Intel | |
DisplayPort (DP) | 1 | |
Thunderbolt | 1 | |
COM Port | 1 | |
RGB Support | Yes | |
RGB Sync | Aura Sync | |
RGB Connector | 2 x AURA RGB header | |
Memory Specifications | ||
Memory Type | DDR4 | |
Memory MHz | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz | |
Memory Channel | Dual | |
Memory Slot | 4 | |
Memory Max | 128GB | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
PCI Express Slot | 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x16 slot, 1 x PCIe 3.0 x1 | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | LGA1200 | |
Supported CPU | 11th Gen: Intel Core Processors & 10th Gen: Intel Core, Pentium Gold and Celeron Processors | |
Generation | 10th/11th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 2 | |
SATA Port | 6 | |
Network & Connectivity | ||
LAN Chipset | Realtek GbE LAN | |
LAN Speed (Mbps) | 10/100/1000/2500 Mb/s | |

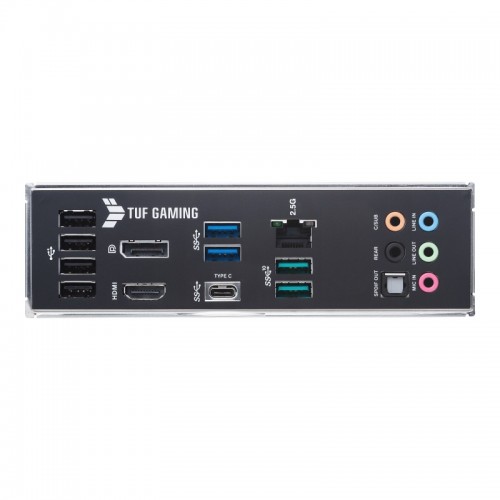

Ports | ||
USB Port | 2 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1 Type-A, 6 x USB 2.0 Type-A | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek ALC897 | |
Audio Channel | 7.1 |
Brand - Asus, Model - Asus TUF GAMING B560M-PLUS, Chipset Brand - Intel, Chipset - Intel B560, CPU Sockets - LGA1200, Supported CPU - 11th Gen: Intel Core Processors & 10th Gen: Intel Core, Pentium Gold and Celeron Processors, Generation - 10th/11th Gen, Memory Type - DDR4, Memory MHz - 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Memory Channel - Dual, Memory Slot - 4, Memory Max. - 128GB, Graphics - Integrated Graphics, PCI Express Slot - 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x16 slot, 1 x PCIe 3.0 x1, Storage Interface - 6Gb/s, M.2 Slot - 2 x M.2 slots (1x M.2, type 2242/2260/2280), (1 x M.2, type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA)), LAN Chipset - Realtek GbE LAN, LAN Speed (Mbps) - 10/100/1000/2500 Mb/s, Audio Chipset - Realtek ALC897, Audio Channel - 7.1 Channel, USB Port - 2 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1 Type-A, 6 x USB 2.0 Type-A, HDMI Port - 1, DisplayPort (DP) - 1, SATA Port - 6, BIOS Type - 128 Mb Flash ROM, BIOS Model - UEFI AMI BIOS, Thunderbolt - 1, COM Port - 1, RGB Support - Yes, RGB Sync - Aura Sync, RGB Connector - 2 x AURA RGB header, Form Factor - microATX, Supported Operating System - Windows 10, Special Features - Intel B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8+1 Power stages, Realtek 2.5Gb Ethernet, DisplayPort 1.4, HDMI 2.0, USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C, Thunderbolt 4 support, Aura Sync RGB Lighting, Addressable RGB, Two-way AI Noise-Cancelation: Reduce background noise from the microphone and audio output for crystal-clear communication in games or video conferences, ASUS OptiMem II: Careful routing of traces and vias to preserve signal integrity for improved memory stability, Others - 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s), 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector, 1 x Clear CMOS header, 2 x AURA Addressable Gen 2 header, 1 x Front Panel Audio header, 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port,, Warranty - 3 Year Replacement
