Basic Information | ||
Supported CPU | Supports 10th Gen Intel Core Processors (Socket 1200) | |
Chipset | Intel H470 | |
BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake-up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment | |
Form Factor | Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm | |
Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection | |
PCI | - 1 x PCI Express 3.0 x16 Slot - 1 x PCI Express 3.0 x1 Slot | |
Memory Specifications | ||
Type | Dual-Channel DDR4 Memory Technology | |
Slots | 2 x DDR4 DIMM Slots | |
Supported Memory | - Supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots | |
Maximum Memory | 64GB | |
Warranty Information | ||
Manufacturing Warranty | 3 years | |
More Information | ||
Special Features | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop | |
Ports | ||
HDMI | 1 x HDMI Port | |
D-Sub (s) | 1 x D-Sub port |

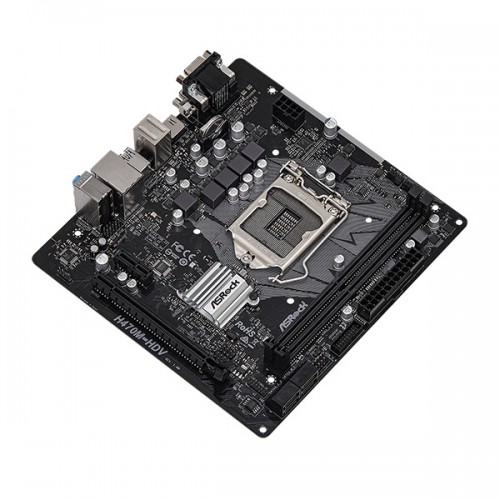

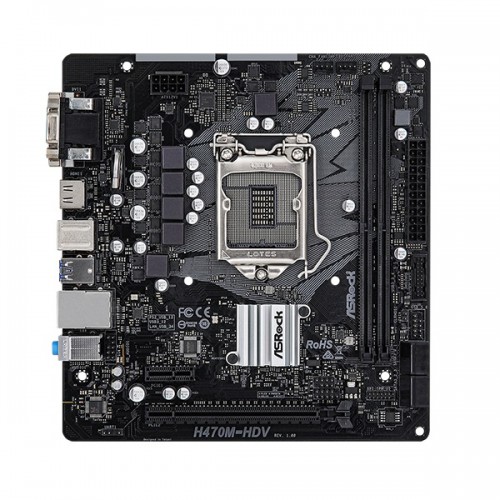

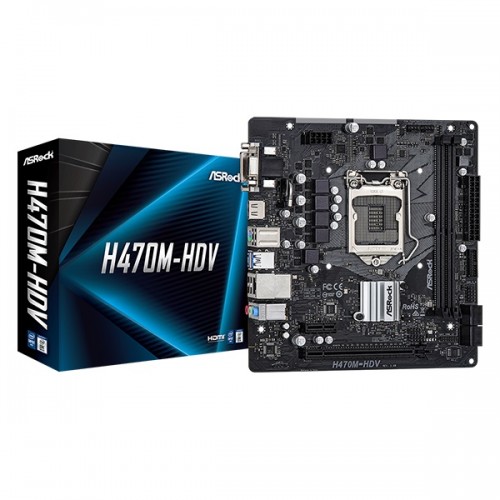

ASRock H470M-HDV M-ATX Motherboard supports 10th Gen Intel Core Processors (Socket 1200). It has a 5 Power Phase design, it offers enhanced performance with the lowest temperature for advanced gamers. Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. It supports Intel Turbo Boost Max 3.0 Technology. It features Dual Channel DDR4 Memory Technology and supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory. It has 2 x DDR4 DIMM Slots. It comes with a 7.1 CH HD Audio (Realtek ALC897 Audio Codec). It has 4 x SATA3 6.0 Gb/s Connectors, support RAID. It has a Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm Solid Capacitor design. It offers 4 USB 3.2 Gen1 (2 Front, 2 Rear). It comes with 128Mb AMI UEFI Legal BIOS with multilingual GUI support. It has a High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. It has 3 years warranty.
