| Main Feature | ||
| Device Type | Graphics card | |
| Bus Type | PCI Express 3.0 | |
| Graphics Engine | NVIDIA GeForce RTX 2060 | |
| Core Clock | 1365 MHz | |
| Boost Clock | 1785 MHz | |
| CUDA Cores | 1920 | |
| Max Resolution | 7680 x 4320 | |
| Physical Specification | ||
| Max Monitors Supported | 4 | |
| Interfaces | DisplayPort | DVI-D (dual link) | 2 x HDMI | |
| API Supported | DirectX 12, OpenGL 4.6 | |
| Features | 2.5-slot Fan Cooler, Nvidia GeForce ShadowPlay, NVIDIA G-Sync ready, Super Alloy Power II technology, AUTO-EXTREME technology, metal wraparound backplate, GPU Tweak II, Real-Time Ray Tracing, NVIDIA Turing GPU architecture, Axial-tech Fan Design, 0dB Techn | |
| Width | 2.1 in | |
| Depth | 9.5 in | |
| Height | 5.1 in | |
| Power | ||
| Required Power Supply | 500 W | |
| Additional Requirements | 8 pin PCI Express power connector | |
| Memory Specifications | ||
| Size | 6 GB | |
| Technology | GDDR6 SDRAM | |
| Effective Clock Speed | 14000 MHz | |
| Bus Width | 192-bit | |
| Warranty Information | ||
| Warrantty | :2 Year | |
| Performance | ||
| Software Included | Display drivers, ASUS GPU Tweak II, XSplit Gamecaster 2 (1 year Premium license), WTFast Gamers Private Network (6 months Premium license), ASUS Quantumcloud | |
| Compliant Standards | HDCP 2.2 | |
NVIDIA TURING™ GPU architecture and the all-new RTX platform provides up to 6X the performance of previous-generation graphics cards and brings the power of real-time ray tracing and AI to games.
DirectX 12 enables new visual effects and rendering techniques for more lifelike gaming.
NVIDIA Shadowplay™ Record and share high-quality gameplay videos, screenshots, and livestreams with your friends.
Axial-tech Fan Design brings larger blades and a unique barrier ring to increase air pressure.
Auto-Extreme Technology uses automation to enhance reliability.
Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
Reinforced by a Protective Backplate that prevents PCB flex and trace damage.

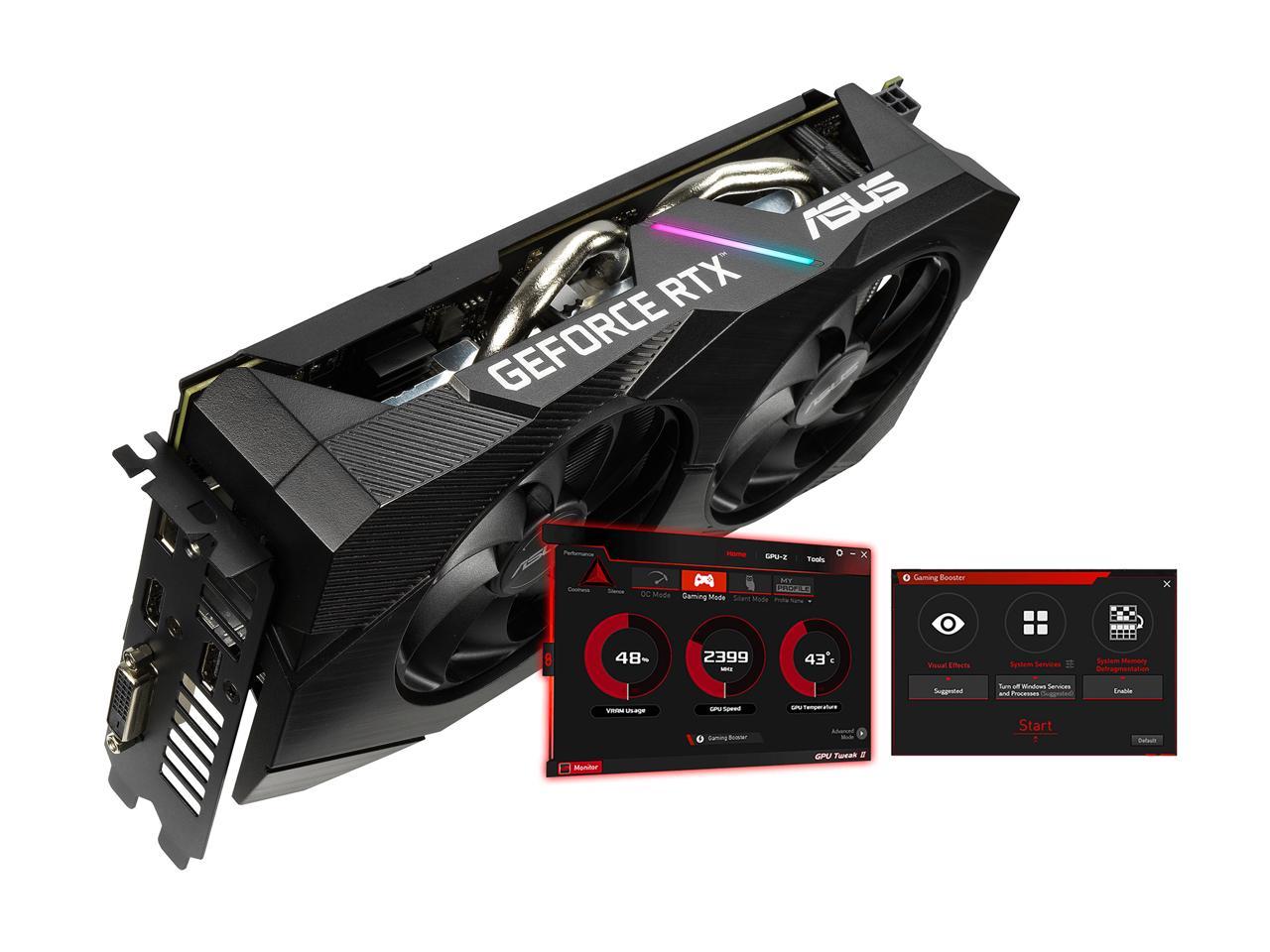

GPU Tweak II provides intuitive performance tweaking and thermal controls.
144-Hour Validation Program puts cards through a series of stringent tests to ensure compatibility with the latest games.
