General | ||

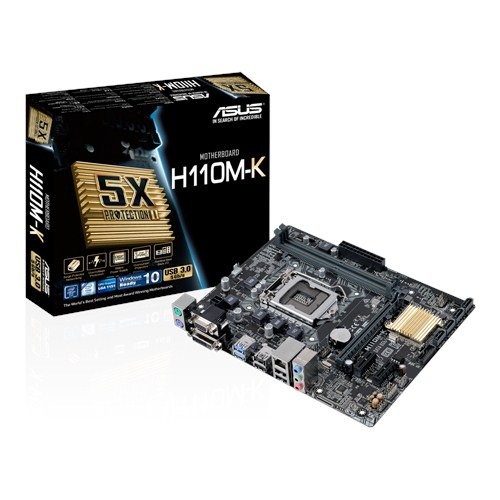

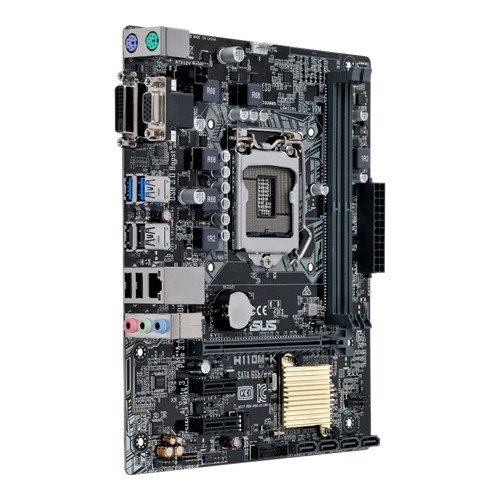

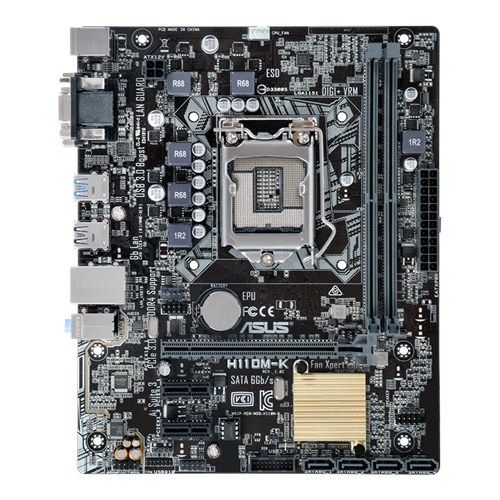

Model | Asus H110 M-K | |
Chipset | Intel H110 | |
Form Factor | mATX | |
Additional Info | ||
BIOS Type | 1 x 128 Mbit Flash ROM | |
BIOS Model | UEFI AMI BIOS | |
BIOS Version | PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0 | |
Others | 1 x COM port, 1 x CPU Fan connector, 1 x Chassis Fan connector, 1 x Clear CMOS jumper, 3 x Audio jack | |
Memory Specifications | ||
Memory Type | DDR4 | |
Memory MHz | 2400/2133MHz | |
Memory Channel | Dual | |
Memory Slot | 2 | |
Memory Max | 32GB | |
Optane Memory Support | No | |
Graphics Specifications | ||
Graphics Chipset | Integrated Graphics | |
PCI Express Slot | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray), 2 x PCIe 2.0 x1 | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | LGA1151 | |
Supported CPU | 6th/7th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron processors | |
Generation | 6th/7th | |
Supported Operating System | Windows 7 / 8.1 / 10 | |
Storage | ||
SATA Port | 4 x SATA | |
Network & Connectivity | ||
LAN Chipset | Realtek RTL8111H | |
LAN Speed (Mbps) | 10/100/1000Mbps | |

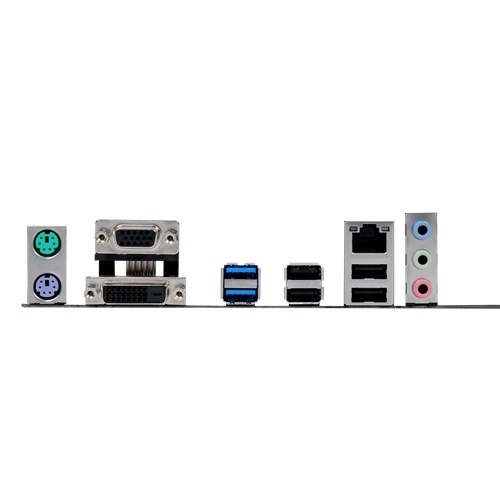

Ports | ||
USB Port | 4 x USB3.1 Gen 1, 6 x USB2.0 | |
VGA Port | 1 | |
DVI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek ALC887 | |
Audio Channel | 8 |
Model - Asus H110M-K/C/SI, CPU Sockets - LGA1151, Chipset - Intel H110, Supported CPU - 6th/7th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron processors, Memory Type - DDR4, Memory MHz - 2400/2133MHz, Memory Channel - Dual, Memory Slot - 2, Memory Max. - 32GB, Optane Memory Support - No, Graphic - Integrated Graphics, PCI Express Slot - 1 x PCIe 3.0/2.0 x16 (x16 mode, gray), 2 x PCIe 2.0 x1, Storage Interface - 6Gb/s, LAN Chipset - Realtek RTL8111H, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC887, Audio Channel - 8-Channel, USB Port - 4 x USB3.1 Gen 1, 6 x USB2.0, VGA Port - 1, DVI Port - 1, SATA Port - 4 x SATA, BIOS Type - 1 x 128 Mbit Flash ROM, BIOS Model - UEFI AMI BIOS, BIOS Version - PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Supported Operating System - Windows 7 / 8.1 / 10, Form Factor - mATX, Special Features - ASUS 5X Protection II, ASUS EPU, AI Suite 3, Ai Charger, Anti-Surge, Disk Unlocker, Mobo Connect, PC Cleaner, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design, Media Streamer, Others - 1 x COM port, 1 x CPU Fan connector, 1 x Chassis Fan connector, 1 x Clear CMOS jumper, 3 x Audio jack, Warranty - 3 year
