General | ||

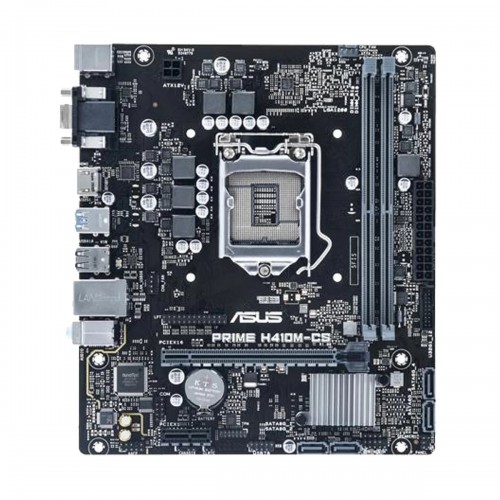

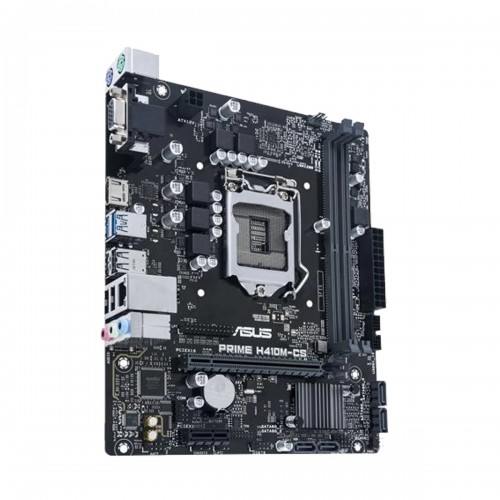

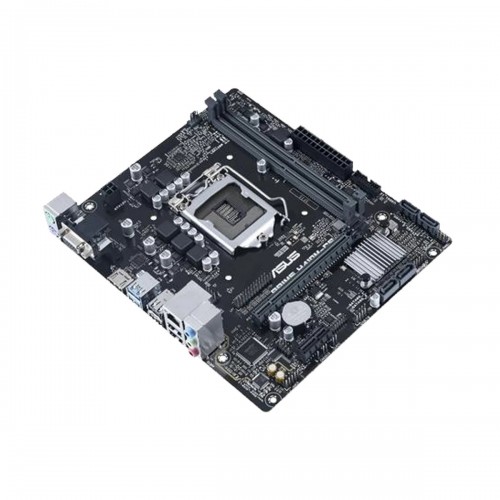

Model | Asus PRIME H410M-CS | |
Chipset | Intel H410 | |
Form Factor | mATX | |
Additional Info | ||
BIOS Type | 128 Mb Flash | |
BIOS Model | UEFI AMI BIOS | |
Memory Specifications | ||
Type | DDR4 | |
MHz | 2933, 2800, 2666, 2400, 2133 MHz | |
Channel | Dual | |
Slot | 2 | |
Graphics Specifications | ||
PCI Express Slot | 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | LGA1200 | |
Supported CPU | Intel Core, Pentium Gold, Celeron Processors | |
Generation | 10th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
SATA Port | 4 | |
Network & Connectivity | ||
LAN Chipset | Realtek RTL8111H | |
LAN Speed (Mbps) | 10/ 100/ 1000Mbps | |

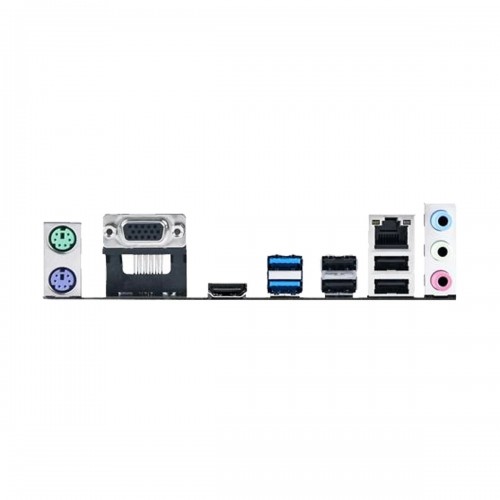

Ports | ||
USB Port | Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0 ports, Front: 1 x USB 3.2 Gen 1, 1 x USB 2.0 | |
VGA Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek ALC887 | |
Audio Channel | 7.1 |
Brand - Asus, Model - Asus PRIME H410M-CS, CPU Sockets - LGA1200, Chipset - Intel H410 Chipset, Supported CPU - Intel Core, Pentium Gold, Celeron Processors, Generation - 10th Gen, Memory Type - DDR4, Memory MHz - 2933/ 2800/ 2666/ 2400/ 2133 MHz, Memory Channel - Dual channel, Memory Slot - 2, Memory Max. - 64GB, PCI Express Slot - 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1, Storage Interface - 6Gb/s, LAN Chipset - Realtek RTL8111H, LAN Speed (Mbps) - 10/ 100/ 1000Mbps, Audio Chipset - Realtek ALC887, Audio Channel - 7.1 Channel, USB Port - Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0 ports, Front: 1 x USB 3.2 Gen 1, 1 x USB 2.0, VGA Port - 1, HDMI Port - 1, SATA Port - 4, BIOS Type - 128 Mb Flash, BIOS Model - UEFI AMI BIOS, Form Factor - mATX, Supported Operating System - Windows 10, Others - 3 x Audio jacks, 1 x PS/2 keyboard (purple) port, 1 x PS/2 mouse (green) port, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
