Physical Specification | ||

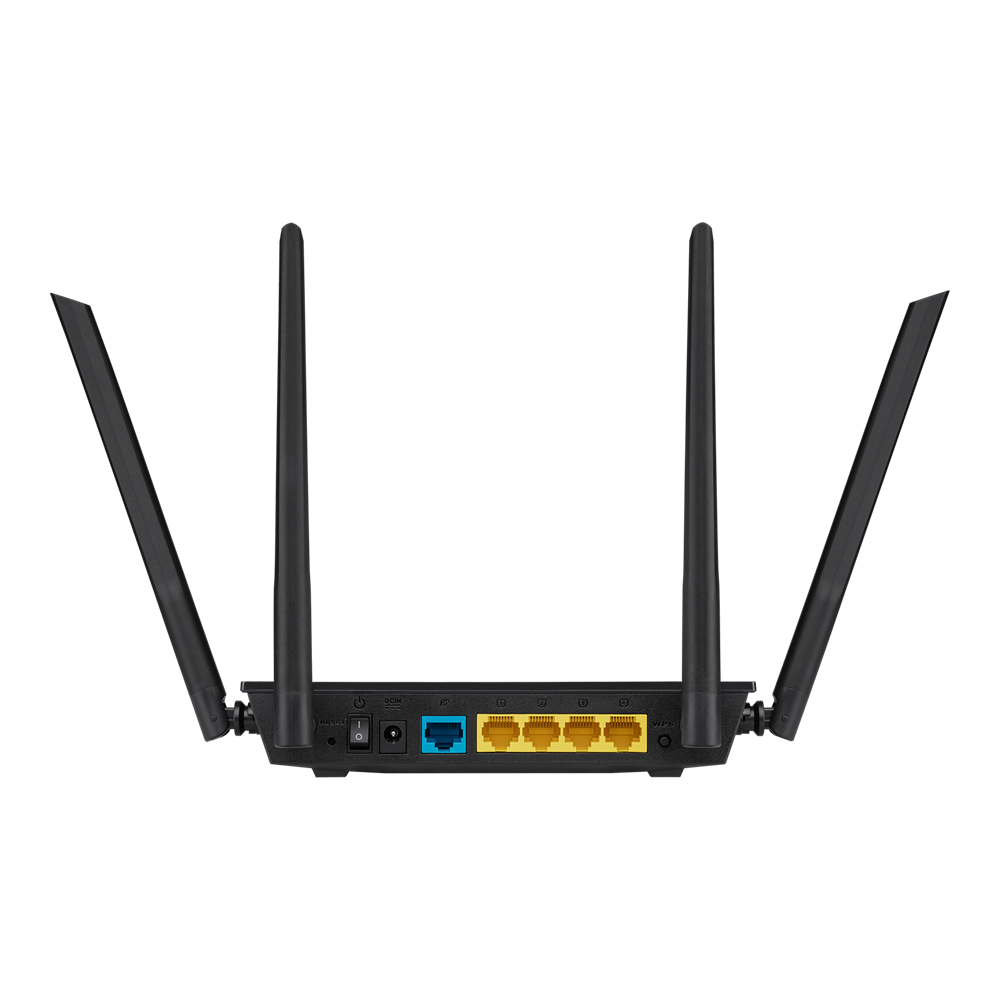

Ports | RJ45 for 10/100Mbps BaseT for WAN x 1 RJ45 for 10/100Mbps BaseT for LAN x 4 | |
Button | WPS Button, Reset Button, Power Button | |
Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 0.5 A current | |
Technical Specification | ||
Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.3 IEEE 802.3u IEEE 802.11i IEEE 802.11e IPv4 IPv6 | |
Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps 802.11n : up to 300 Mbps 802.11ac : up to 433 Mbps | |
Antenna | External antenna x 4 | |
Transmit/Receive | MIMO technology 2.4 GHz 2 x 2 5 GHz 2 x 2 | |
Memory | 16 MB Flash 64 MB RAM | |
Operating Frequency | 2.4GHz 5GHz | |
Additional Info | ||
AiMesh | AiMesh:No Primary AiMesh router:No AiMesh node:No | |
Router APP | ASUS Router APP | |
AiProtection | AiProtection:No Router Security Assessment:No Malicious site blocking:No Two-Way IPS:No Infected Device Prevention and Blocking;No | |
Administration | Operating mode:Accesspoint, Router Operating system:ASUSWRT Free OS upgrade:Yes Firewall:Yes Maximum Firewall keyword filter:64 Maximum Firewall network service filter:32 Maximum Firewall URL filter:64 Wake on LAN (WOL):Yes SSH:Yes Configuration backup and |
