Asus TUF B550 Plus ATX AM4 Gaming Motherboard

(0 reviews)

  • Price : TK.0
  • Brand : Asus
  • Model : Asus TUF B550 Plus
  • Warrantty : 3 Year's (Official)
  • Product Code : TLB-730
  • Status :

Quantity:

Total Price:

Payment:

Share:

Specificaions :

Technical Specification
Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s
Basic Information
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B550
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
PCI 3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 Support PCIe bifurcation for RAID on CPU function.
M.2 Socket 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2 Socket 3, with M Key, Type 2242/226
Memory Specifications
Type DDR4
Slots Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
Graphics Specifications
Graphics 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Graphics specifications may vary between CPU types.
Max Shared Memory 128GB
Warranty Information
Manufacturing Warranty 03 years warranty

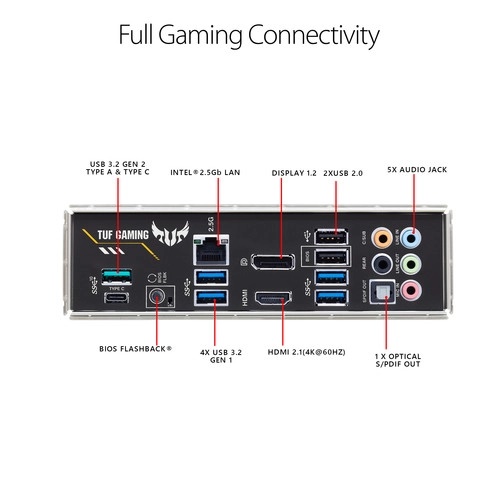

Ports
HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)( x Type-A) 2 x USB 2.0 port(s)( x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) 2 x USB 3.
LAN Port (s) Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard 1 x LAN (2.5G) port(s)
Supported Storage Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Sock
Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at bac
Internal I/O Ports 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2
TPM (Trusted Platform Module ) 1 x SPI TPM header

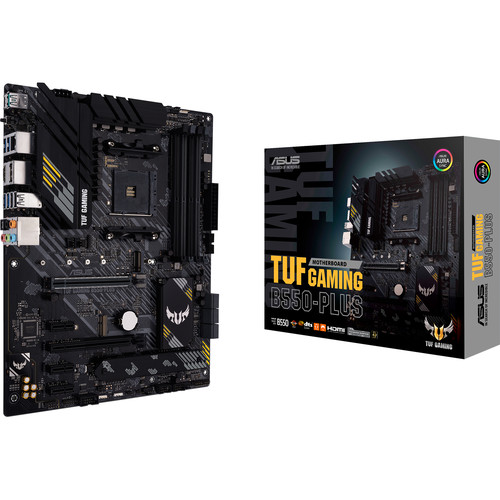

Asus TUF Gaming B550 Plus ATX AM4 Motherboard

The new Asus TUF Gaming B550 Plus ATX AM4 Motherboard is ready forAMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors. It comes with Enhanced power solution, 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability. In this monitor, VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 Comprehensive cooling are available. This motherboad is also has PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support Next-gen connectivity. This motherboard is made for online gaming - 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technolog. This motherboard also has Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in Realtek S1200A codec. This motherboard has AI noise-canceling microphone, that provides crystal-clear in-game voice communication.

This moptherboard is featured with upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550-Plus is the perfect foundation for your next high-core-count battle rig. Here, The onboard VRM of TUF Gaming B550-Plus utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen Processors demand. The new TUF Gaming B550-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. In this motherboard, 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers. The TUF Gaming B550-Plus motherboard comes along with an M.2 (Key E) slot which gives you the flexibility to upgrade your networking solution by installing an M.2 Wi-Fi/Bluetooth module.

The Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, that allows to configure application priority via an intuitive interface, and reduces network lag. The Asus TUF Gaming B550 Plus ATX AM4 Motherboard has 03 years warranty.
