General | ||
Model | Asus TUF GAMING A520M-PLUS | |
Chipset | AMD A520 | |
Form Factor | mATX | |
Additional Info | ||
BIOS Type | 1 x 256 Mbit Flash ROM | |
BIOS Model | UEFI AMI BIOS | |
RGB Support | Yes | |
RGB Sync | Aura Sync | |
RGB Connector | 1 x Aura RGB Strip Header | |
Memory Specifications | ||
Memory Type | DDR4 | |
Memory MHz | 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133MHz | |
Memory Channel | Dual | |
Memory Slot | 4 | |
Memory Max | 128GB | |
Optane Memory Support | No | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
Multi-GPU Support | No | |
PCI Express Slot | 1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1 | |
CrossFire Support | No | |
Sli Support | No | |
Warranty Information | ||
Manufacture Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | AM4 | |
Supported CPU | AMD Ryzen 3rd Generation Processors with Radeon Graphics processors | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 1 | |
SATA Port | 4 x SATA | |
Raid Support | 0, 1, 10 | |
Network & Connectivity | ||
LAN Chipset | Realtek L8200A | |
LAN Speed (Mbps) | 10/100/1000 | |
Ports | ||

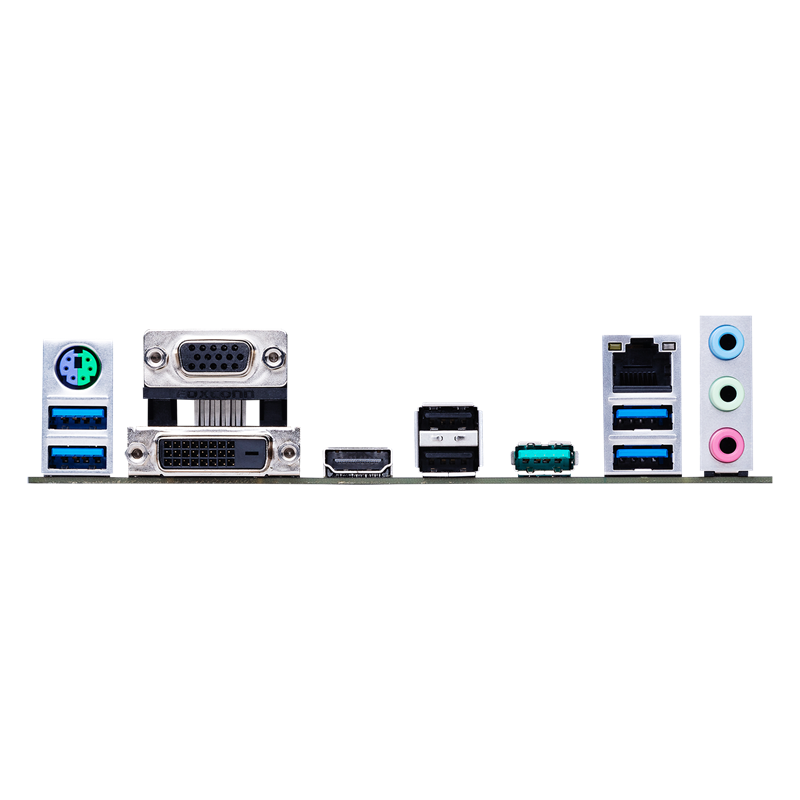

USB Port | 1 x USB3.2 Gen 2 Type-A, 5 x USB3.2 Gen 1 Type-A, 4 x USB2.0 | |
VGA Port | 1 | |
DVI Port | 1 |

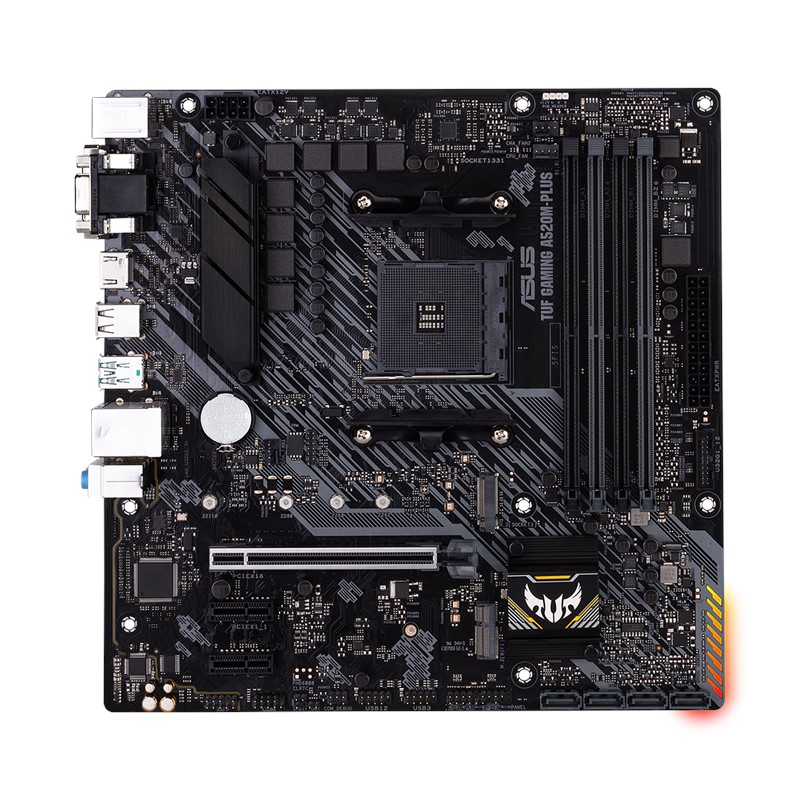

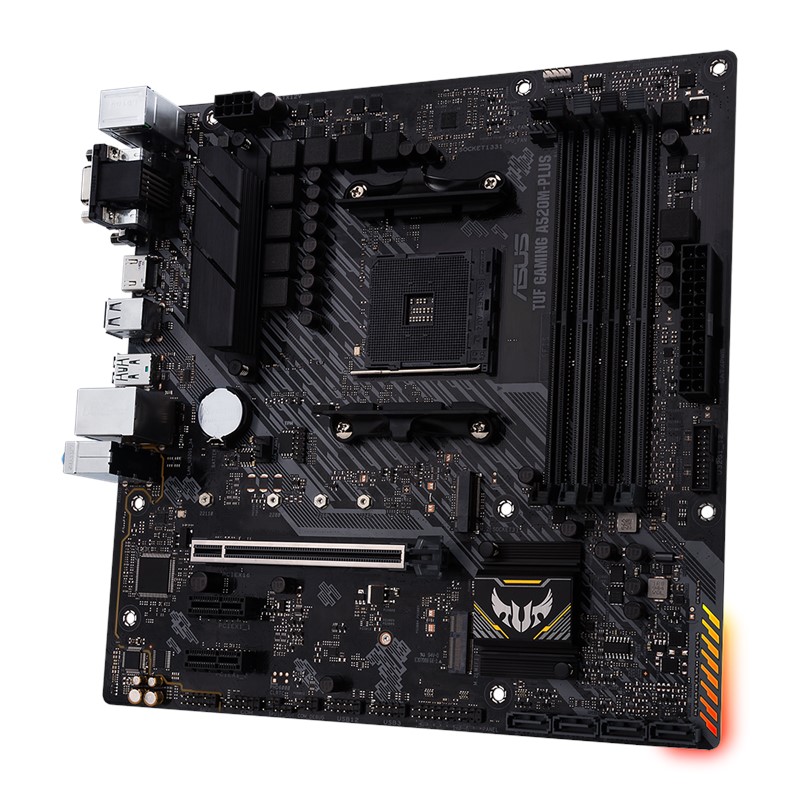

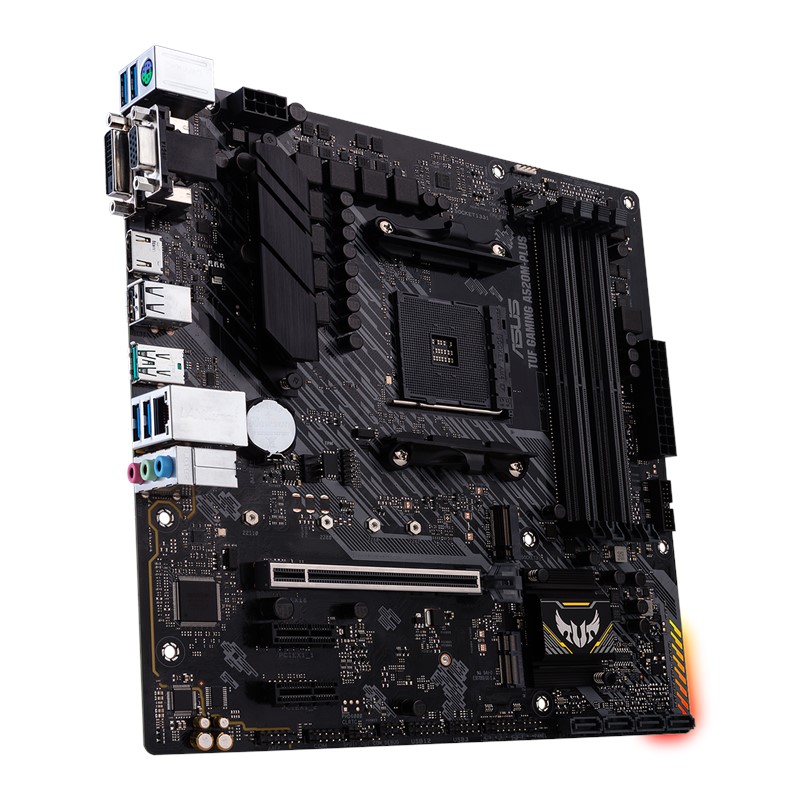

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/DVI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB lighting support
TUF Gaming A520M-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
TUF CHOKES
Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.
TUF CAPACITORS
Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.
The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
M.2 slot supports up to 22110 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.
Numerous USB ports support gaming rigs loaded with peripherals, including a USB Type-A connector with fast USB 3.2 Gen 2 connectivity for compatible cases.
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
Strengthened solder points around the PCIe and DIMM pins.
Metal inserts keep graphics cards properly aligned during installation.
The metal side-panels feature hooks that firmly clasp the slot body.
Experience ultra-fast gaming with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Static BreathingStrobingRainbowColor CycleStarry NightMusic EffectSmart
Model - Asus TUF GAMING A520M-PLUS, CPU Sockets - AM4, Chipset - AMD A520, Supported CPU - AMD Ryzen 3rd Generation Processors with Radeon Graphics processors, Memory Type - DDR4, Memory MHz - 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133MHz, Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - No, Graphic - Integrated Graphics, Multi-GPU Support - No, PCI Express Slot - 1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3 (M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes)), LAN Chipset - Realtek L8200A, LAN Speed (Mbps) - 10/100/1000, Audio Chipset - Realtek ALC887, Audio Channel - 7.1-Channel, WiFi - No, Bluetooth - No, USB Port - 1 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0, VGA Port - 1, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 4 x SATA, BIOS Type - 1 x 256 Mbit Flash ROM, BIOS Model - UEFI AMI BIOS, FireWire - No, CrossFire Support - No, Sli Support - No, RaidSupport - 0,1,10, Thunderbolt - No, TPM Port - No, COM Port - No, RGB Support - Yes, RGB Sync - Aura Sync, RGB Connector - 1 x Aura RGB Strip Header, Form Factor - mATX, Supported Operating System - Windows 10, Special Features - Micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/DVI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB lighting support, AMD AM4 socket, Comprehensive cooling, VRM and PCH heatsinks, Fan Xpert 2+, Made for online gaming, Realtek L8200A Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard and TurboLAN technology, Aura Sync RGB Lighting, Synchronize LED lighting with a vast portfolio of compatible PC gear, ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, Others - 1 x CPU Fan connector(s), 2 x Chassis Fan connector(s), 1 x SPI TPM header, 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x COM port header, 3 x Audio jack(s), Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
