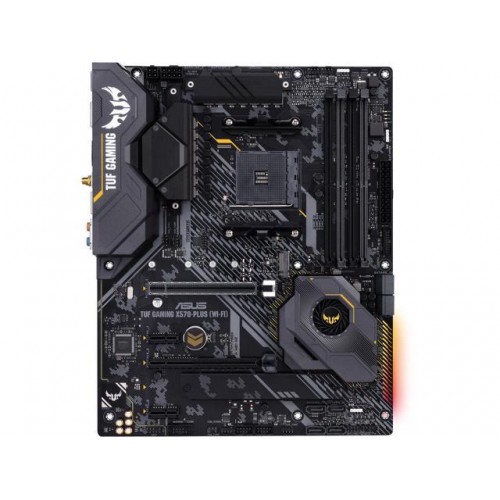

Asus Tuf Gaming X570-Plus (Wi-Fi) AMD Motherboard
Price : TK.0
Brand : Asus
Model : Asus Tuf Gaming X570-Plus
Warrantty : 3 Year's (Official)
Product Code : TLB-731
Status :
- Out of stock
Payment:
Share:
Related Products
Biostar H310MHP DDR4 Motherboard
TK.6900
Specificaions :
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors | |
| Chipset | AMD X570 | |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) | |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| PCI | 3rd Gen AMD Ryzen Processors : 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen Processors : 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset : 1 x PCIe 4.0 x16 (max a | |
| M.2 Socket | Yes | |
| Memory Specifications | ||
| Type | 3rd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 4400(O.C) /3466(O.C.) / 3400(O.C. /3200(O.C.) / 3000(O.C.) / 2933(O.C.) /2800(O.C.) / 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processor : 4 x DIMM, Max. 128GB, DDR4 3600(O.C.) / 34 | |
| Maximum Memory | 128GB, DDR4 | |
| Graphics Specifications | ||
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 216 | |
| Max Shared Memory | Max. 128GB | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |
| Ports | ||
| HDMI | Yes ( 1.4b ) | |
| Display Port (s) | Yes | |
| USB (s) | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM) AMD X570 chipset : 2 x US | |
| LAN Port (s) | Yes ( RJ45 ) | |
| Supported Storage | 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) st | |
| Audio | Realtek ALC S1200A 8-Channel High Definition Audio CODEC | |
| Internal I/O Ports | 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header | |

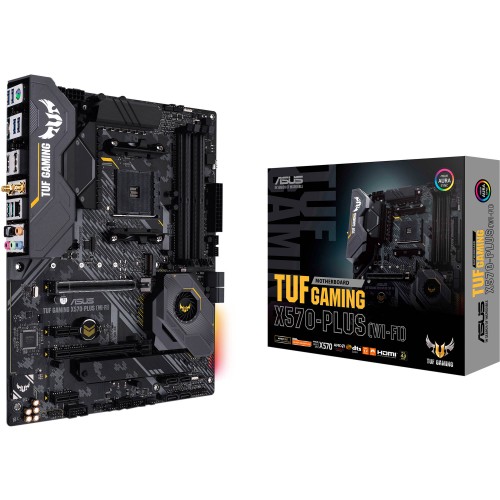

Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard
DURABLE. STABLE. RELIABLE.
TUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.EASY PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.TUF gaming alliance
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.Immersive Gaming
TUF Gaming X570-Plus (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
EXCLUSIVE GIGABIT ETHERNET
Experience ultra-fast gaming with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.Intel Wireless-AC 9260 - INTEGRATED WI-FI 5
TUF Gaming X570-Plus (Wi-Fi) features Intel Wireless AC-9260 Wi-Fi 5 (802.11ac) with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps. In fact, its integrated Wireless-AC 9260 Wi-Fi adapter pushes wireless data up to 2X faster — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.
Turbo LAN
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play.
THE POWER OF AMD
AMD X570 CHIPSET :
The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI® and AMD CrossFireX. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
AMD AM4 SOCKET FOR 3RD AND 2ND GEN AMD RYZEN™ / 2ND AND 1ST GEN AMD RYZEN™ WITH RADEON™ VEGA GRAPHICS PROCESSORS :
The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.
