Physical Specification | ||

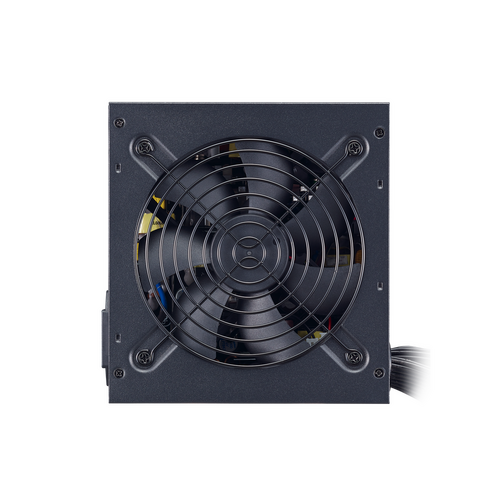

Fan Size | 120mm | |
Fan Bearing | HDB | |
80 PLUS Rating | 80 PLUS Bronze | |
Protections | OVP, OPP, SCP, UVP, OTP | |
ATX 24-Pin Connectors | 1 | |
EPS 4+4 Pin Connectors | 1 | |
SATA Connectors | 6 | |
Peripheral 4-Pin Connectors | 4 | |
PCI-e 6+2 Pin Connectors | 2 | |
Technical Specification | ||
Input Frequency | 50-60Hz | |
Fan Speed | 1500 RPM | |
Noise Level @ 20% | 11.13 dBA | |
Noise Level @ 50% | 15.6 dBA | |
Noise Level @ 100% | 31.0 dBA | |
Efficiency | 85% Typically | |
ErP 2014 Lot 3 | Yes | |
Operating Temperature | 40°C | |
Power Good Signal | 100 - 500 ms | |
Hold Up Time | >18ms at 100% Full Load@230Vac | |
MTBF | >100,000 Hours | |
General | ||

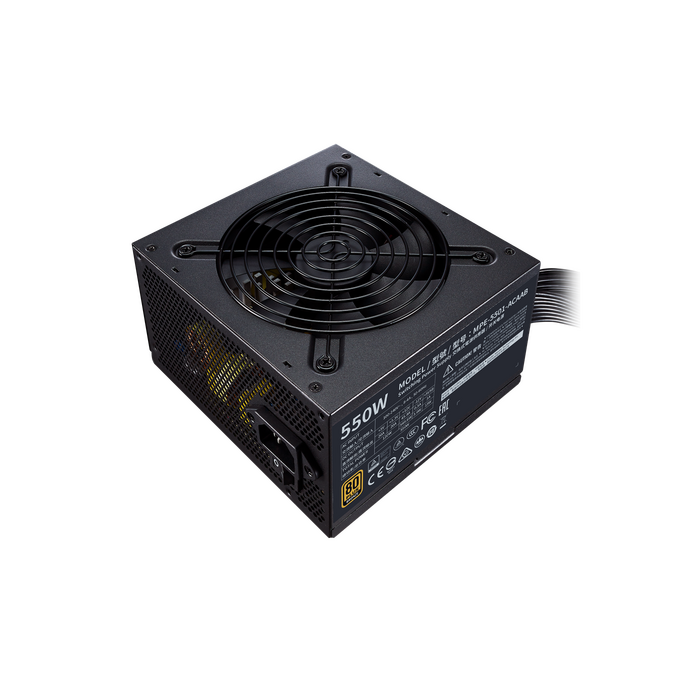

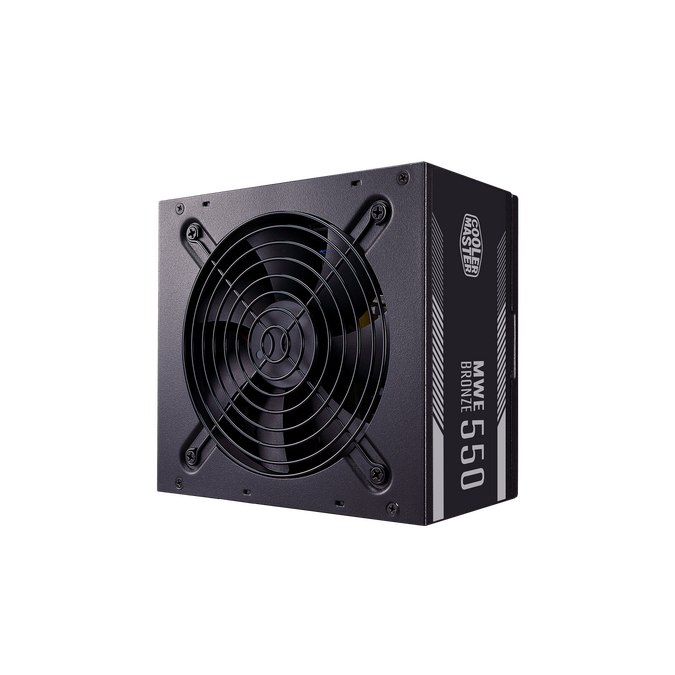

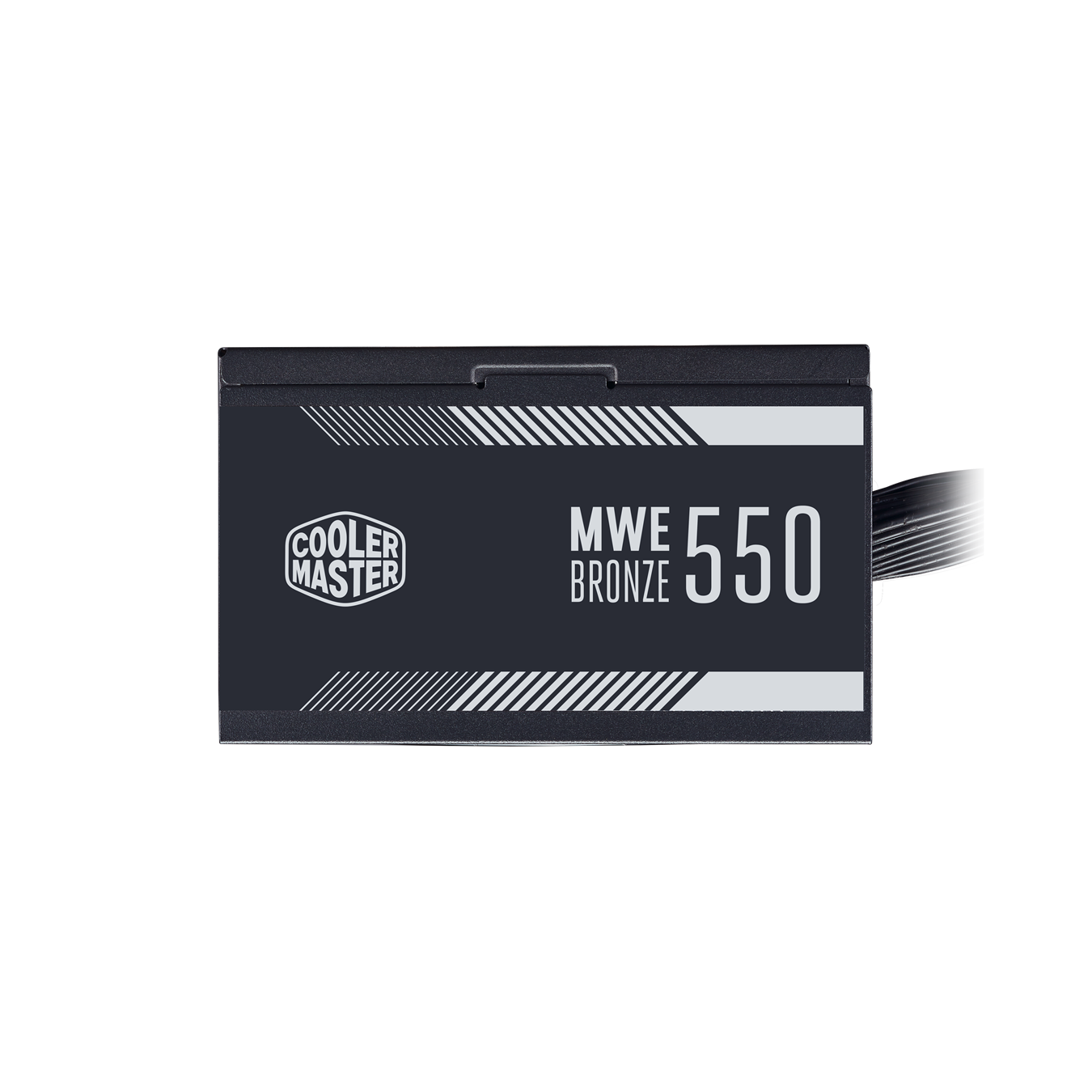

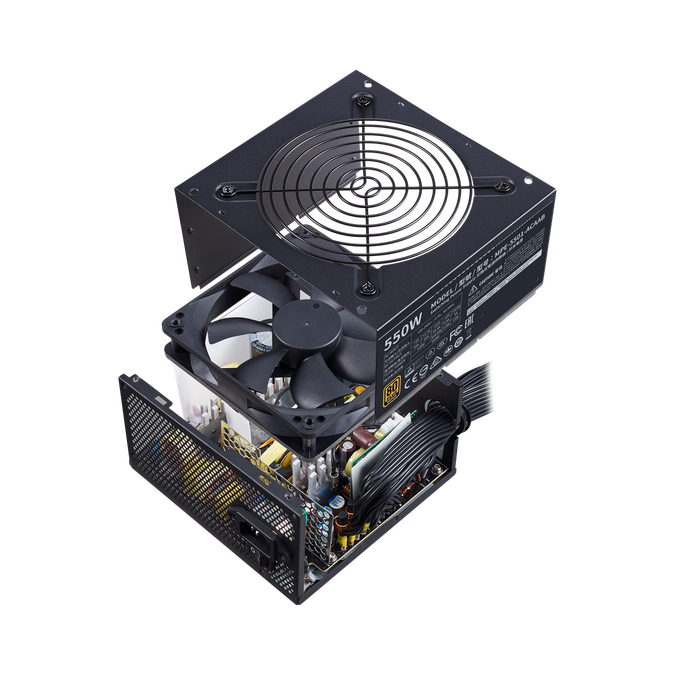

Model | MWE 550 Bronze V2 | |

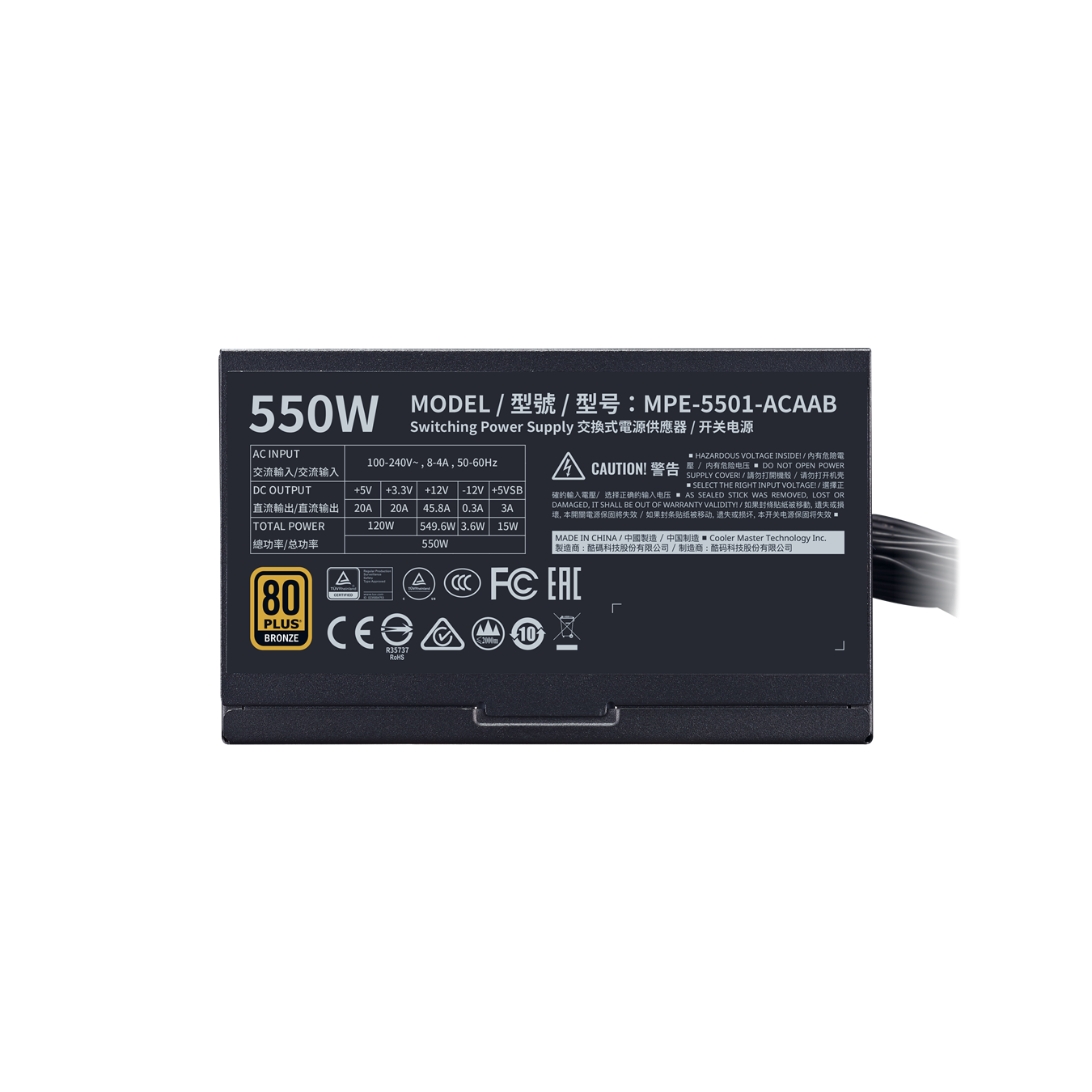

Product Number | MPE-5501-ACAAB | |
ATX Version | ATX 12V V2.52 | |
PFC | Active PFC | |
80 Plus | Bronze | |
Modular | Non Modular | |
Wattage | 500 to 750W | |
Series | MWE Bronze Series | |
Power | ||
Input Voltage | 100-240V | |
Input Current | 8-4A | |
Physical Description | ||
Dimensions | 140 x 150 x 86 mm | |
Warranty Information | ||
Manufacturing Warranty | 02 Years |
