Main Feature | ||
CPU(Processor) | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package. L3 cache varies with CPU. | |
Chipset | Intel® H81 Express Chipset | |
Physical Specification | ||
BIOS | LAN Realtek® GbE LAN chip (10/100/1000 Mbit) | |
Audio | Chip integrated by Realtek ALC661, Supports 5.1-channel audio-out | |
Memory Specifications | ||
Memory | 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory Support for DDR3 1600/1333 MHz memory modules | |
Slots | – 1 * PCI Express x16 Slot – 1 * PCI Express x1 Slot | |
Storage | – 4* Serial ATA 2.0 devices | |
Warranty Information | ||
Warranty | 01 Year Warranty | |
Network & Connectivity | ||
Internal I/O Connectors | – 1 * 24-pin ATX Power Connetor – 1 * 4-pin ATX 12V Power Connetor – 2 * USB connector support additional 4 USB ports – 1 * LPC_DEBUG connector – 1 * Front panel audio connector – 1 * System Panel connector | |
Back Panel I/O Ports | – 1 * PS/2 Mouse/Keyboard – 1 * VGA – 1 * HD Port – 4 * USB 3.0 / 2.0 – 1 * RJ45(LAN) Port – 1 * 3 Audio jacks |

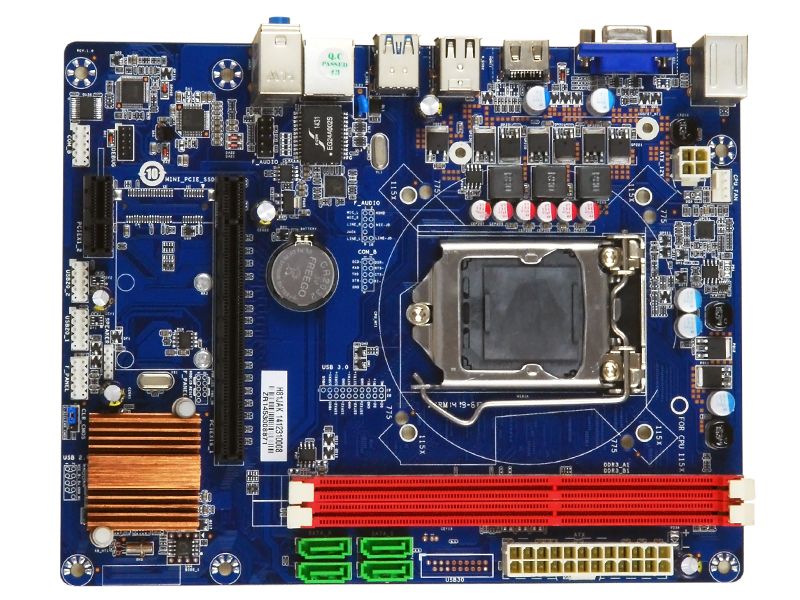

This motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.
The latest 4th generation Intel® Core™ processors and Intel® H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide significantly higher frame rates in the latest DX11 3D game titles H81JAK-U.
This motherboard supports DDR3 memory that features data transfer rates of 1600 (O.C.)/1333/1066 MHz providing great performance for 3D graphics and other memory-demanding applications
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming H81JAK-U.
This motherboard supports hard drives based on the Serial ATA (SATA) 6Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.
2 x USB 3.0 ports and 2 x USB 2.0 on the back panel, 4 x USB 2.0ports available through the internal USB headers)
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems H81JAK-U.
