Main Feature | ||
Model | Gigabyte P650B 650W | |
Type | ATX 12V v2.31 | |
Fan Size | Yes, 120mm | |
Physical Specification | ||
Input Current | 9A-4A | |
Input Voltage | 100 - 240V | |
Input Frequency Range | 50-60 Hz | |
Over Voltage Protection | Yes | |
Maximum Power | 650W | |
SATA Power Connectors | 6 | |
PCIe Connectors | 4 | |
EPS Connectors | 1 | |
Floppy Connectors | 1 | |
ATX Main Connectors | 1 | |
4-Pin Peripheral Connectors | 3 | |
Efficiency | 80 PLUS bronze certified | |
Technical Specification | ||
MTBF | 100,000 hours | |
Others | input Frequency Range: 50/60 Hz, | |
Physical Description | ||
Dimensions | 140 x 86 x 150mm | |
Warranty Information | ||
Manufacturing Warranty | 05 Years |
Features
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency.

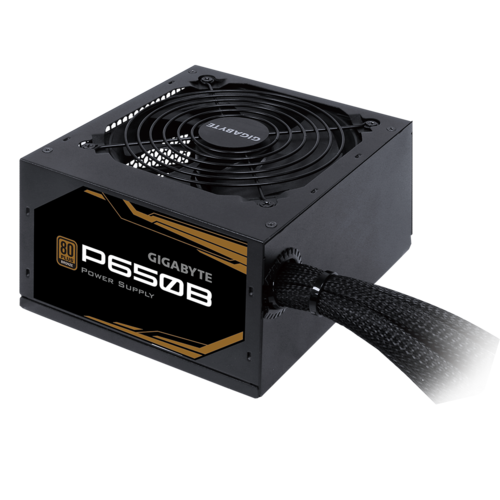

P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case.
MB
(20+4pins) x1
CPU
(4+4pins) x1
PCI-E
(6+2pins) x4
SATA
x6
Peripheral x3
Floppy x1
;
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
*The life of the main capacitor is over 20 years (Environment 25℃)
Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation.

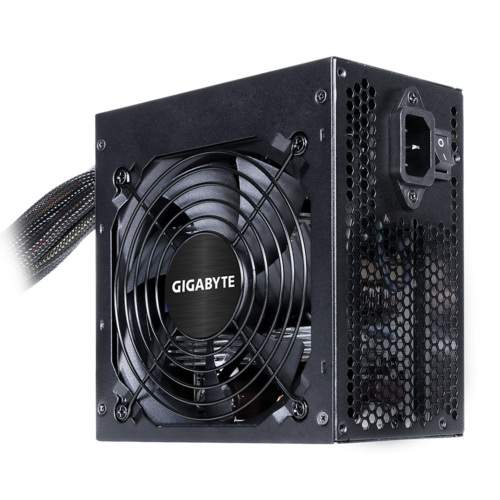

120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
*The life of the Hydraulic Bearing fan is more than 4 years.
Model - Gigabyte P650B 650W, Type - ATX 12V v2.31, Maximum Power - 650 Watt, Input Voltage - 100 - 240V, Input Frequency Range - 50-60 Hz, Input Current - 9A-4A, Over Voltage Protection - Yes, Efficiency - 80 PLUS bronze certified, Fan Size - Yes, 120mm, ATX Main Connectors - 1, EPS Connectors - 1, PCIe Connectors - 4, SATA Power Connectors - 6, 4-Pin Peripheral Connectors - 3, Floppy Connectors - 1, MTBF - 100,000 hours, Dimension( W/H/D) - 140 x 86 x 150mm, Warranty - 5 year, Others - input Frequency Range: 50/60 Hz,
