Physical Specification | ||
LAN Chipset | Intel GbE LAN | |
LAN Speed (Mbps) | 100/1000 | |
USB Port | 1 x USB Type-C 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 | |
DVI Port | 1 | |
HDMI Port | 1 | |
Audio Chipset | Realtek ALC887 | |
Audio Channel | 2/4/5.1/7.1 | |
DisplayPort (DP) | No | |
FireWire | No | |
Thunderbolt | Yes | |
TPM Port | Yes | |
COM Port | No | |
RGB Support | Yes | |
RGB Sync | RGB FUSION 2.0 | |
RGB Connector | 1 x RGB LED strip header | |
Technical Specification | ||
Sockets Supported | LGA1200 | |
Supported CPU | 10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors | |
Supported Operating System | Windows 10 | |
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 1 | |
SATA Port | 6 x SATA | |
Raid Support | 0,1,5,10 | |
WiFi | No | |
Bluetooth | No | |
General | ||

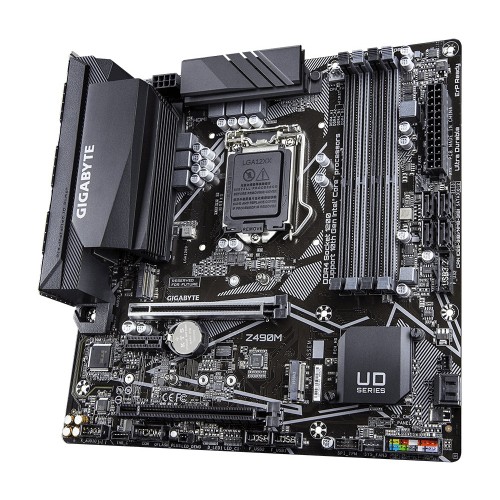

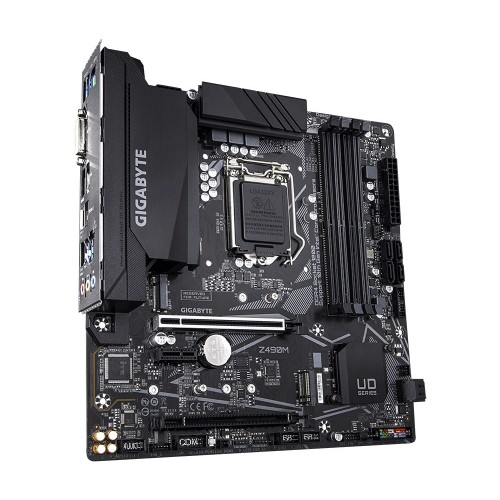

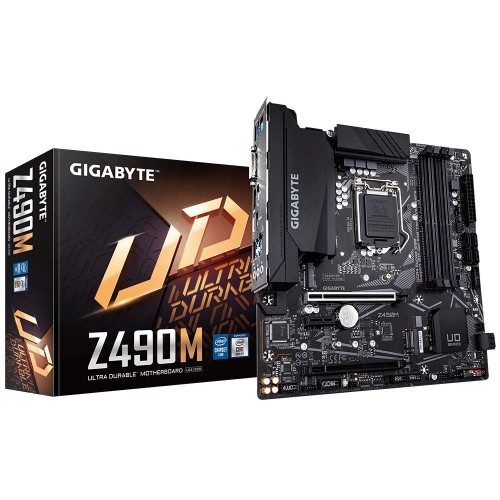

Model | Gigabyte Z490M | |
Chipset | Intel Z490 Express | |
Form Factor | Micro ATX Form | |
Additional Info | ||
BIOS Type | 256 Mbit flash | |
BIOS Model | AMI UEFI BIOS | |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Memory Specifications | ||
Memory Type | DDR4 | |
Memory MHz | Intel Core i9/ i7 (4400(O.C.)/ 4333(O.C.)/4266(O.C.) / 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666 / 2400 / 2133MHz), Intel Core i5/i3/Pent | |
Memory Channel | Dual | |
Memory Slot | 4 | |
Memory Max. | 128GB | |
Optane Memory Support | Yes | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
Multi-GPU Support | AMD Quad-GPU CrossFire and 2-Way AMD CrossFire | |
PCI Express Slot | 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot | |
CrossFire Support | Yes | |
Sli Support | No | |
Warranty Information | ||
Manufacturing Warranty | 03 Years |
Intel® Z490M Motherboard with Advanced Thermal Design, 2-Way CrossFire™ Multi-Graphics, Intel® GbE with cFosSpeed, USB 3.2 Gen2 Type-A ,USB 3.2 Gen1 Type-C™, PCIe Gen3 X4 M.2, Smart Fan 5, PCIe X16 Slot Armor with Ultra Durable™ Design, RGB FUSION 2.0
4+2 Hybrid Digital VRM Solution with Low RDS(on) MOSFET
GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy
wastage through unnecessary residual heat dissipation. This all amounts
to tangible energy saving which are beneficial for both end-users and
the environment without impacting system performance.
Benefits of Low RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.
Advanced Thermal Design with Integrated IO Armor
MOSFET Heatsinks
Thick Thermal Pad
Grooved for Air-Flow
PCIe 4.0* Hardware Design
For most of prosumers and gamers, high bandwidth storage and high performance graphics card are critical for their applications. To support most cutting edge devices, this motherboard uses the groundbreaking PCIe 4.0 grade hardware design.
* Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.
NVMe PCIe Gen3 x4 M.2 Connectors
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
2-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
CONNECTIVITY
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
The Industry's Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
USB 3.2 Gen 1 Type-C™ Support
The World's Next Universal Connector
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.2 Gen1 support and faster charging capabilities. Powered by the Intel® controller, this little port is the better USB Type-C™.

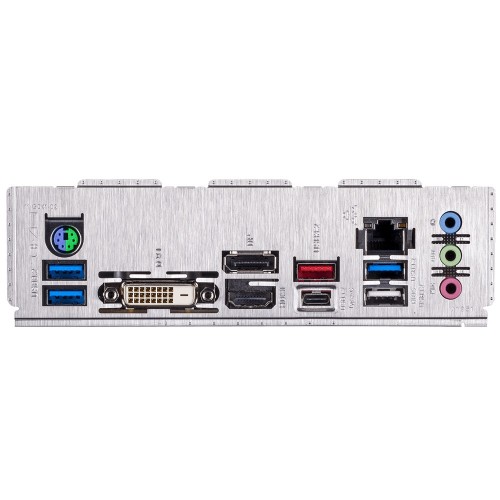

Pre-Installed I/O Shield
COOLING
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Fan / Water Pump Connectors
Internal Temperature Sensors
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Temperature Sensors
Hybrid Fan Headers
■ 4 Fan / Water Pump Connectors
■ 6 Temperature Sensors
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
FAN STOP
Hybrid FAN Header
Smart Fan 5 Software
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design
RGB FUSION 2.0
With Z490M Motherboard , RGB Fusion 2.0 is even better with
Addressable LEDs.* RGB Fusion 2.0 offers users the option to control
onboard RGB and external RGB / Addressable LED light strips for their
PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on
Z490 Series Motherboards are now upgraded with Addressable LED support.
With external Addressable LED strips*, where each LED is digitally
addressable, users can experience even more patterns, styles, and
illuminations.
With Z490M Motherboard will support either 5v or 12v Addressable LED
lighting strips and up to 300 LED lights. RGB Fusion 2.0 with
Addressable LEDs comes with new patterns and various speed settings with
more to come.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Model - Gigabyte Z490M, CPU Sockets - LGA1200, Chipset - Intel Z490 Express, Supported CPU - 10th Generation Intel Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors, Generation - 10th Gen, Memory Type - DDR4, Memory MHz - Intel Core i9/ i7 (4400(O.C.)/ 4333(O.C.)/4266(O.C.) / 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666 / 2400 / 2133MHz), Intel Core i5/i3/Pentium/Celeron (2666/ 2400/ 2133MHz), Memory Channel - Dual, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - Yes, Graphic - Integrated Graphics, Multi-GPU Support - AMD Quad-GPU CrossFire and 2-Way AMD CrossFire, PCI Express Slot - 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3(Type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD), LAN Chipset - Intel GbE LAN, LAN Speed (Mbps) - 100/1000, Audio Chipset - Realtek ALC887, Audio Channel - 2/4/5.1/7.1-channel, WiFi - No, Bluetooth - No, USB Port - 1 x USB Type-C 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, VGA Port - No, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 6 x SATA, BIOS Type - 256 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire - No, CrossFire Support - Yes, Sli Support - No, RaidSupport - 0,1,5,10, Thunderbolt - 1 x Thunderbolt, TPM Port - Yes, COM Port - No, RGB Support - Yes, RGB Sync - RGB FUSION 2.0, RGB Connector - 1 x RGB LED strip header, Form Factor - Micro ATX, Supported Operating System - Windows 10, Special Features - Intel Z490M Motherboard with Advanced Thermal Design, 2-Way CrossFire Multi-Graphics, Intel GbE with cFosSpeed, USB 3.2 Gen2 Type-A ,USB 3.2 Gen1 Type-C, PCIe Gen3 X4 M.2, Smart Fan 5, PCIe X16 Slot Armor with Ultra Durable Design, RGB FUSION 2.0,Supports 10th Gen Intel Core Series Processors,Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs,Ultra-Fast PCIe Gen3 X4 M.2 Connectors,Multi-Way Graphics Support with Dual Armor and Ultra Durable Design,Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP,Intel Optane Memory Ready,Intel GbE LAN with cFosSpeed Internet Accelerator Software,Intel USB 3.2 Gen 2 Type-A and USB 3.2 Gen 1 Type-C Support,RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips,Pre-installed IO Shield for Easy and Quick Installation,Q-Flash PLUS Update BIOS without Installing the CPU, Memory and Graphics Card, Others - 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 6 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 connector, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
