Main Feature | ||
Brand | NZXT | |
Model | H510i | |
Technical Specification | ||
Smart Device V2 | 3x Fan channels with Max 10W per channel output* 2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2 fans Built-in noise detection module *Note: If a splitter is used, fan control is regulated depending on the fan conne | |
Included Accessories | Installation screws 10x Cable ties 1x Headset Audio Jack splitter (4 pole to 3 pole) | |
Drive Bays | 2.5”: 2+1 3.5”: 2+1 | |
Fan Support | Front: 2 x 120/ 2 x 140mm Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) Rear: 1x 120mm (1 Aer F120 Case Version included) | |
Physical Description | ||
Dimensions | W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm | |
Material(s) | SGCC Steel, Tempered Glass | |
Weight (Kg) | 6.8 kg | |
Motherboard Support | Mini-ITX, MicroATX, and ATX | |

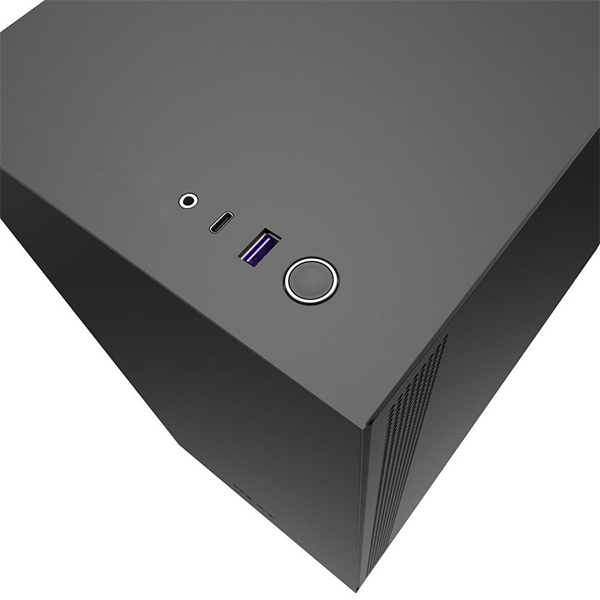

Front I/O Ports | 1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x USB 2.0 Internal Header 1x HD Audio Header | |
LED Strip(s) | 2 integrated addressable LED strip | |
Vertical GPU Mount | 2 Slots | |
Expansion Slots | Radiator Support | |
Fan Specs | Aer F120 (Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing | |
Clearance | Cable Management: 19-23mm GPU Clearance: Up to 381mm Vertical GPU Mount Clearance: 40.64mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) | |
Additional Info | ||
Color | Matte Black |
